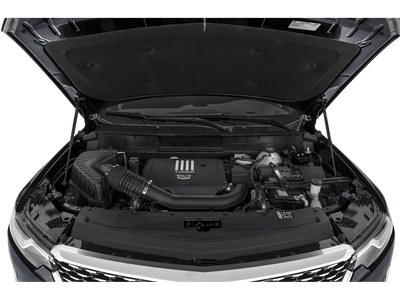

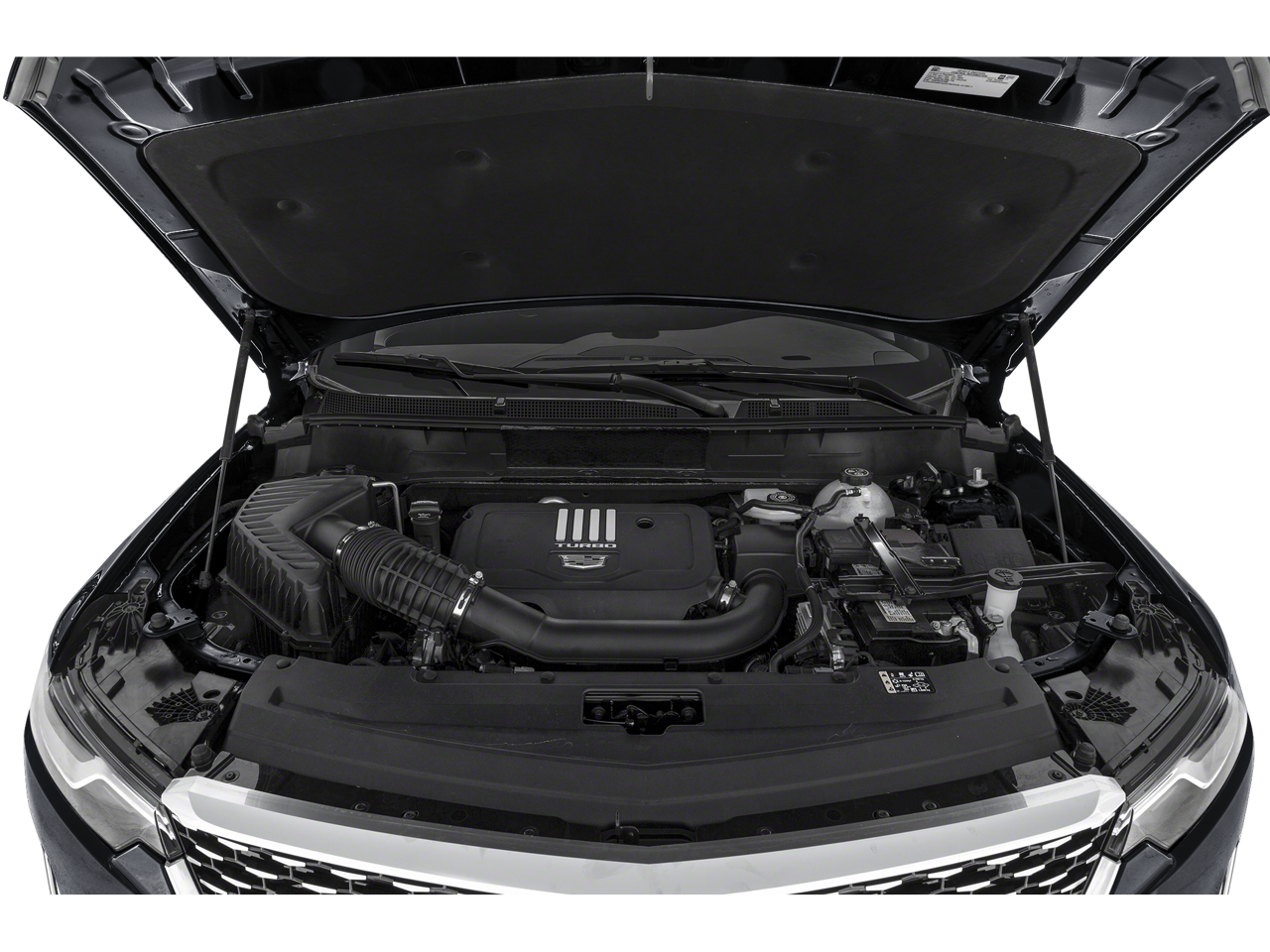

ENGINE, 3.6L V6, DI, VVT, WITH AUTOMATIC STOP/START

• (310 hp [231 kW] @ 6600 rpm
• 271 lb-ft of torque [366 N-m] @ 5000 rpm) (STD)

• Vehicle
• EPA Classification: Sport Utility Vehicles
• Number of Passenger Doors: 4
• Mileage
• Fuel Economy Est-Combined (MPG): 21
• EPA Fuel Economy Est - City (MPG): 18
• EPA Fuel Economy Est - Hwy (MPG): 25
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 155
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Base Curb Weight (lbs): 4644
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 400
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 400
• Maximum Trailering Capacity (lbs): 4000
• Suspension
• Suspension Type - Front: MacPherson Strut
• Suspension Type - Rear: Five-Link Independent
• Suspension Type - Rear (Cont.): w/Coil Springs
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.6 x 1.9
• Rear Brake Rotor Diam x Thickness (in): 12.4 x 0.9
• Tires
• Front Tire Order Code: QNU
• Rear Tire Order Code: QNU
• Spare Tire Order Code: ZCD
• Front Tire Size: P235/55R20
• Rear Tire Size: P235/55R20
• Spare Tire Size: Compact
• Wheels
• Front Wheel Size (in): 20 x - TBD -
• Rear Wheel Size (in): 20 x - TBD -
• Spare Wheel Size (in): 18 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Power Steering
• Steering Ratio (:1), Overall: 16
• Lock to Lock Turns (Steering): - TBD -
• Turning Diameter - Curb to Curb (ft): 38.7
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 22.0
• Exterior Dimensions
• Wheelbase (in): 112.7
• Length, Overall (in): 198.5
• Width, Max w/o mirrors (in): 77.3
• Height, Overall (in): 69.9
• Track Width, Front (in): 66.4
• Track Width, Rear (in): 66.2
• Min Ground Clearance (in): 6.65
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 78.7
• Cargo Volume to Seat 2 (ft³): 43.1
• Cargo Volume to Seat 3 (ft³): 12.6

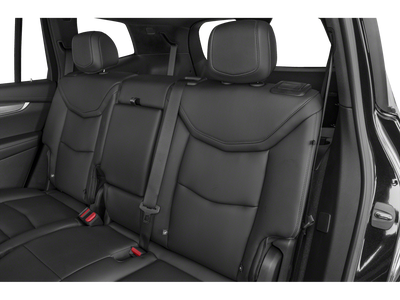

• Interior Dimensions
• Passenger Capacity: 7
• Passenger Volume (ft³): 149.9
• Front Head Room (in): 39.8
• Front Leg Room (in): 41.2
• Front Shoulder Room (in): 58.3
• Front Hip Room (in): 50.1
• Second Head Room (in): 39.1
• Second Leg Room (in): 39.1
• Second Shoulder Room (in): 57.4
• Second Hip Room (in): 55.7
• Third Head Room (in): 37.2
• Third Leg Room (in): 29.5
• Third Shoulder Room (in): 53.5
• Third Hip Room (in): 39.5
• Summary

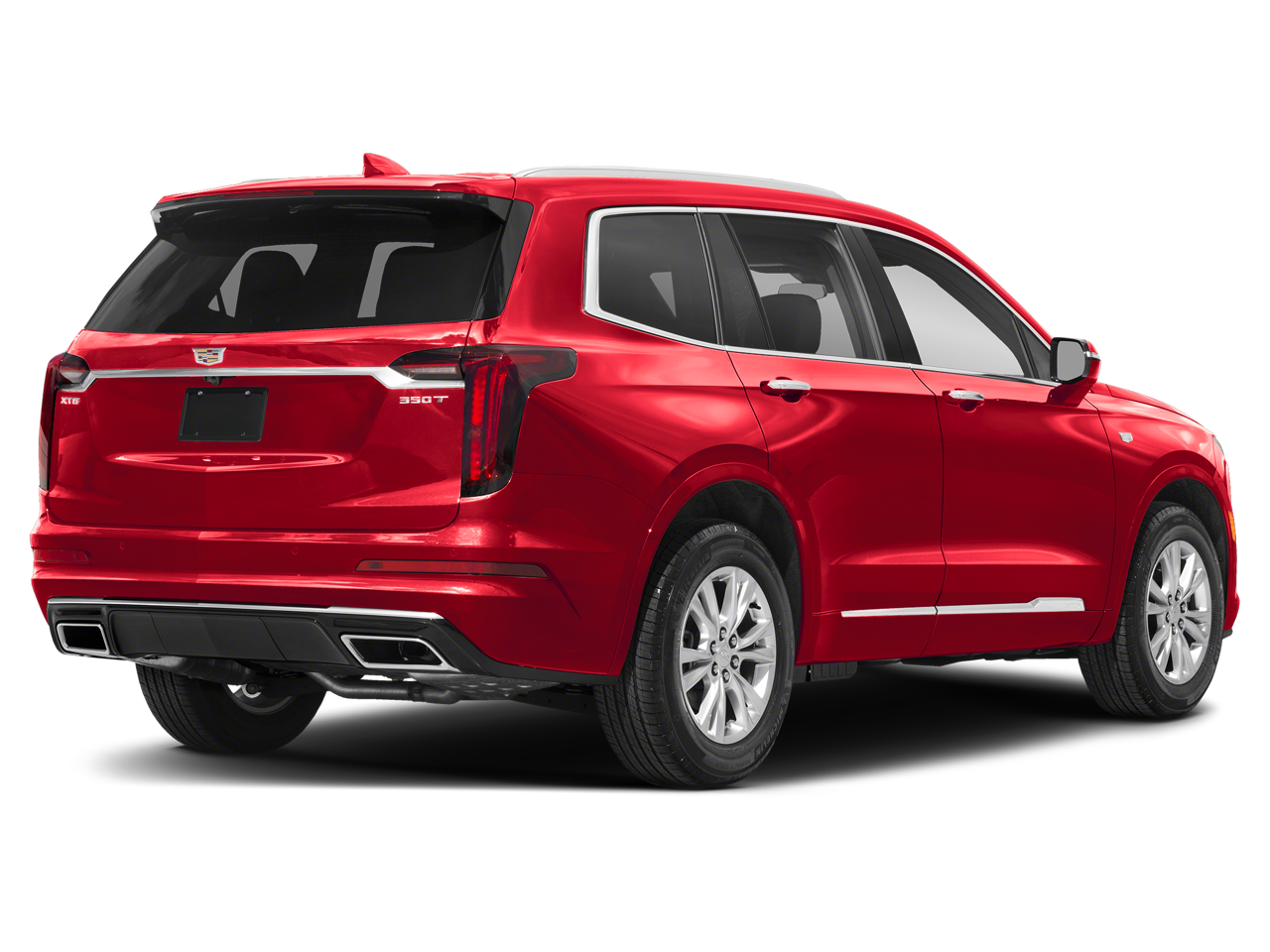

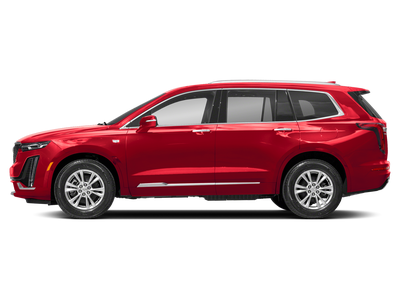

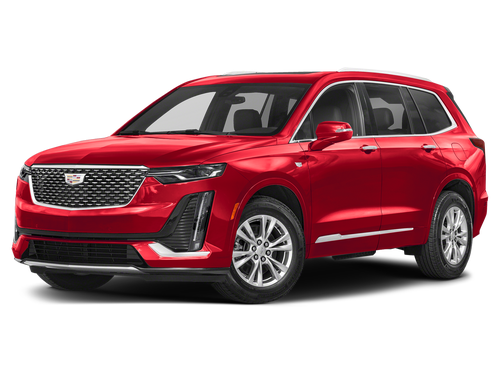

• Vehicle Name: Cadillac XT6
• Body Style: Sport Utility Vehicle
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.5
